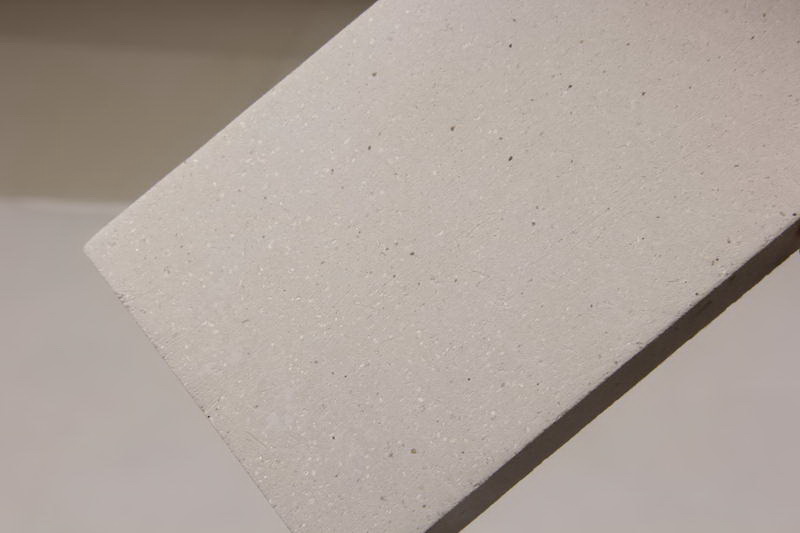

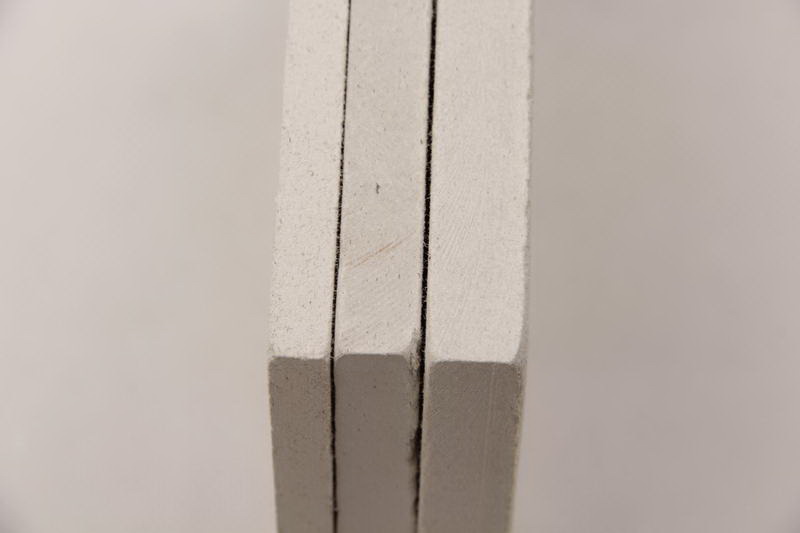

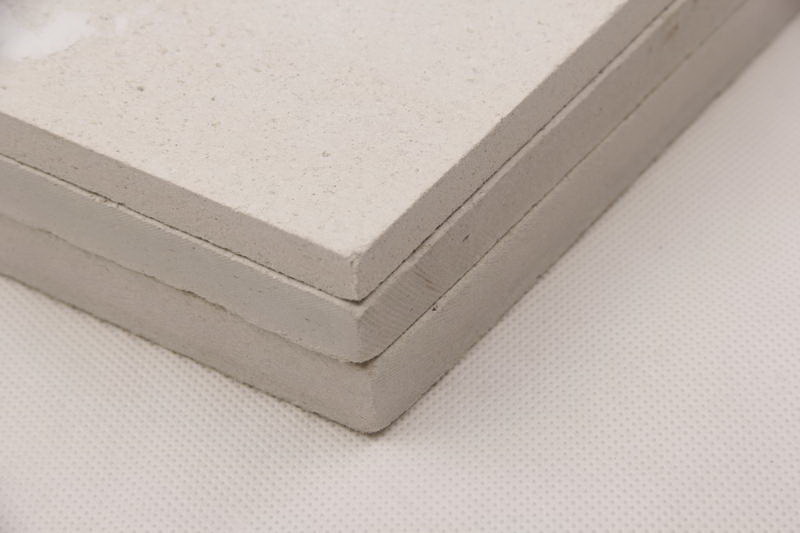

Fireproof Board
Fireproof Board
PRODUCT PRESENTATION
The main materials of calcium silicate board are included lime cement, quartz, calcium silicate, import wood pulp fiber, selected mineral filler, suspending agent and additives. Production processes ingredients, mixed stirring, curing, steam pressure. 100% Non-asbestos.Fireproof board is one of calcium silicate board which is applied to the field of professional fireproof. The fire partition and fireproof ceiling is widely used in a variety of industrial, high-grade civil buildings, but also it can be used as fireproof smoke tube, the fireproof flue pipe, structure protection, and curtain fireproof board within large commercial buildings, highways or subway tunnel.
- Advantages
1. Green & Low Carbon & Pro-environment, no asbestos, no harmful to human.2. Low density, light weight is the outstanding characteristic of Fireproof Board. Its maximum density value is only 0.95 g/cm3.3. Non-combustible material completely. It’s correspond with the China standard the GB 8624-2006-A1 and the British standard BS 476 part 4. It’s completely safety for customers.4. Low room temperature and high temperature coefficient of thermal conductivity. Excellent cold insulation performance can make the air conditioning, heating energy loss to minimum; excellent high temperature insulation performance can isolate the flame and high temperature transmission.
- Application

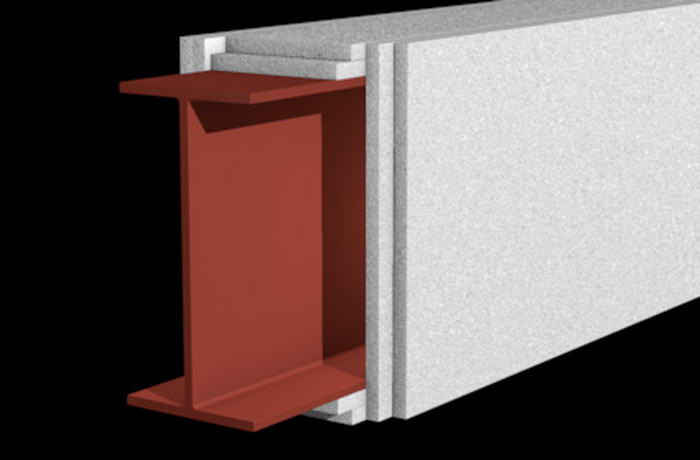

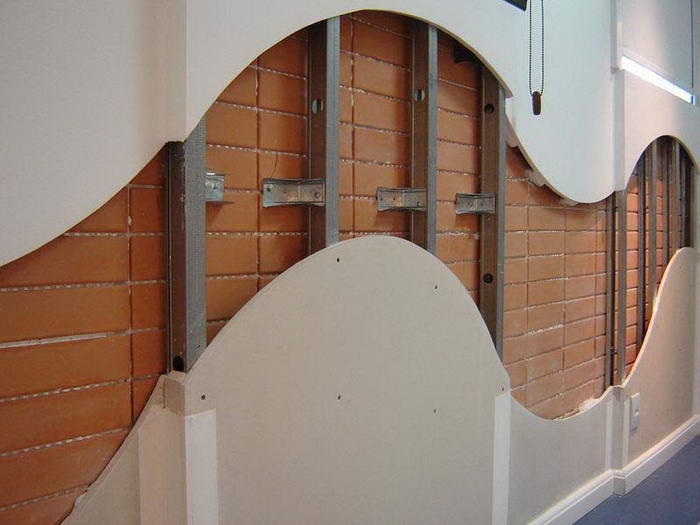

Application:Indoor partition wall and ceilingThe fireproof board what are used as interior flue pipeThe fireproof board what are used as interior steel structureThe fireproof board what are used as interior emergency exit doorMake films or TV what are used in the fire scene
TECHNICAL PARAMETERS
|
Thickness |
Width |
Length |
|
|
|
2440 mm |
|
Item |
Standard |
Tested Result |
Unit |
|
Thickness |
9±0.4 |
9.1 |
mm |
|
Density(Oven dry) |
0.90-1.10 |
0.95 |
g/cm³ |
|
Moisture Content |
≤ 10 |
5 |
% |
|
Moisture Movement |
≤ 0.25 |
0.12 |
% |
|
Thermal Shrinkage |
≤0.50 |
0.38 |
% |
|
Coefficient Of Heat Conductivity |
≤0.35 |
0.16 |
W/(m·k) |
|
Bending Strength |
≥6 |
7 |
MPa |
|
Radioactivity |
GB6566 |
Accepted |
— |
|

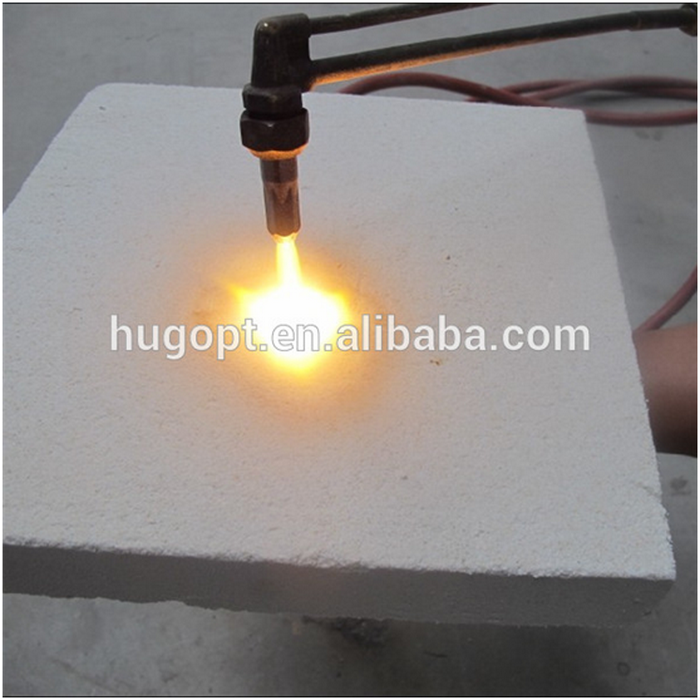

Fire Resistance |
GB8624-2006-A1 |
Accepted |
— |
|
SGS -BS 476 PART 4 |
Accepted |
— |
|
|
Asbestos Content |
100% Non-asbestos |
Safety |
— |
|
Color |
— |
White(Natural) |
— |

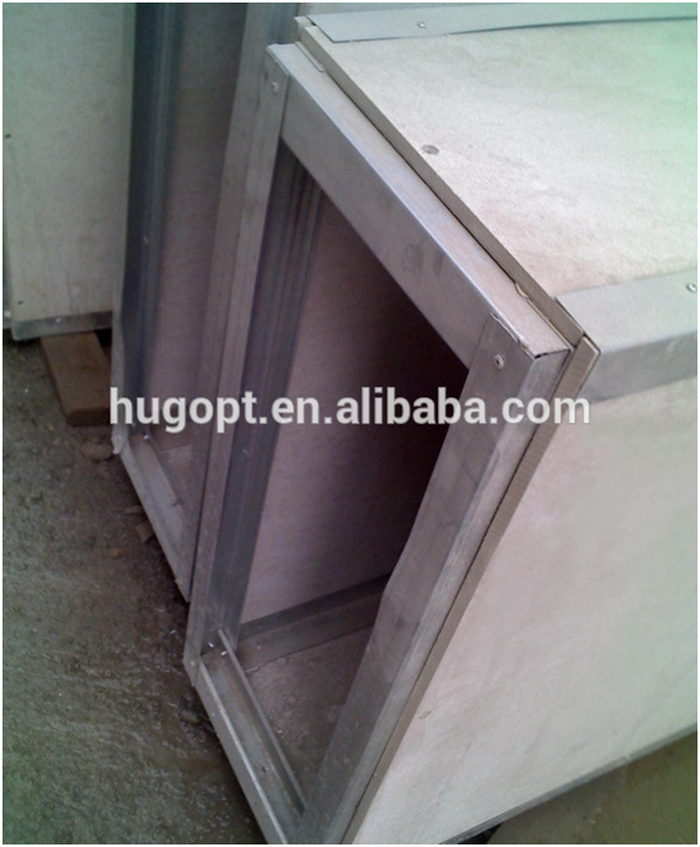

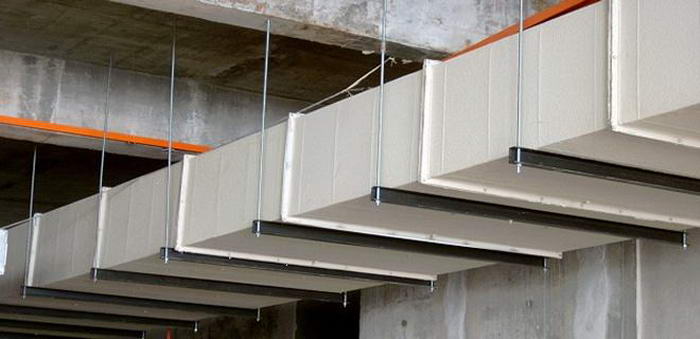

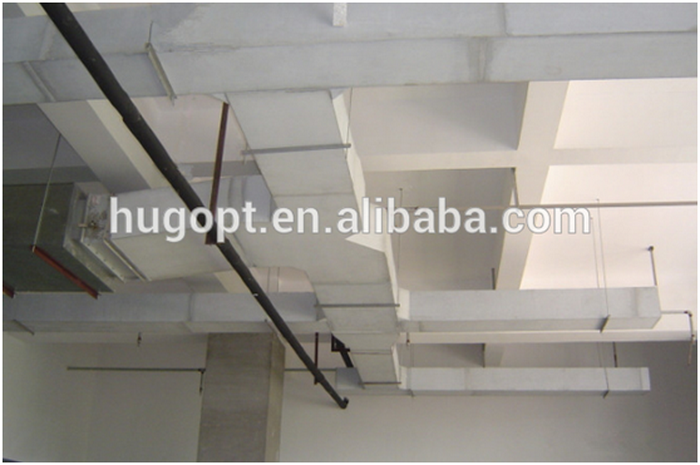

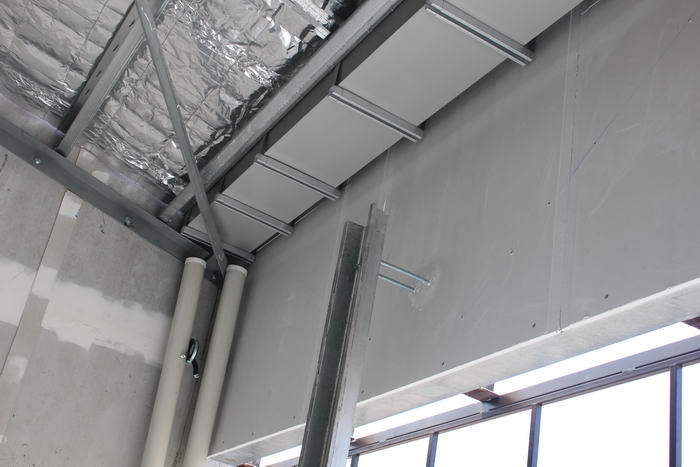

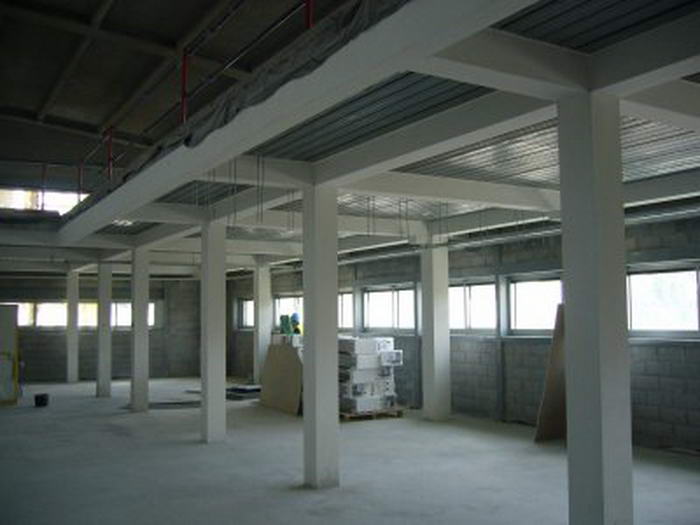

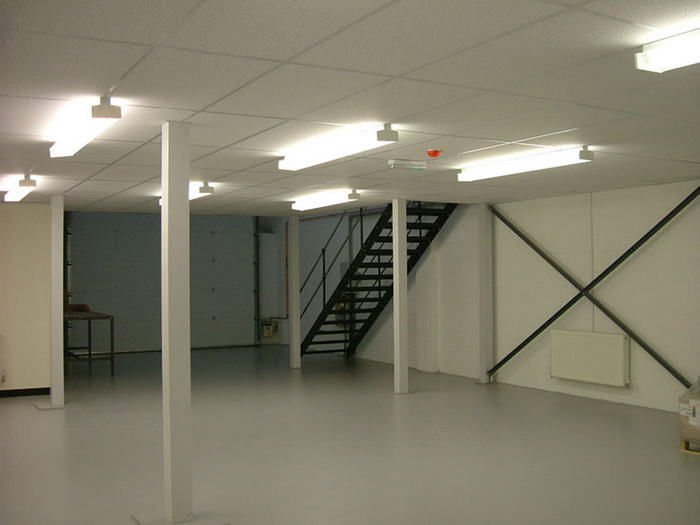

Case application
click to view each detail picture

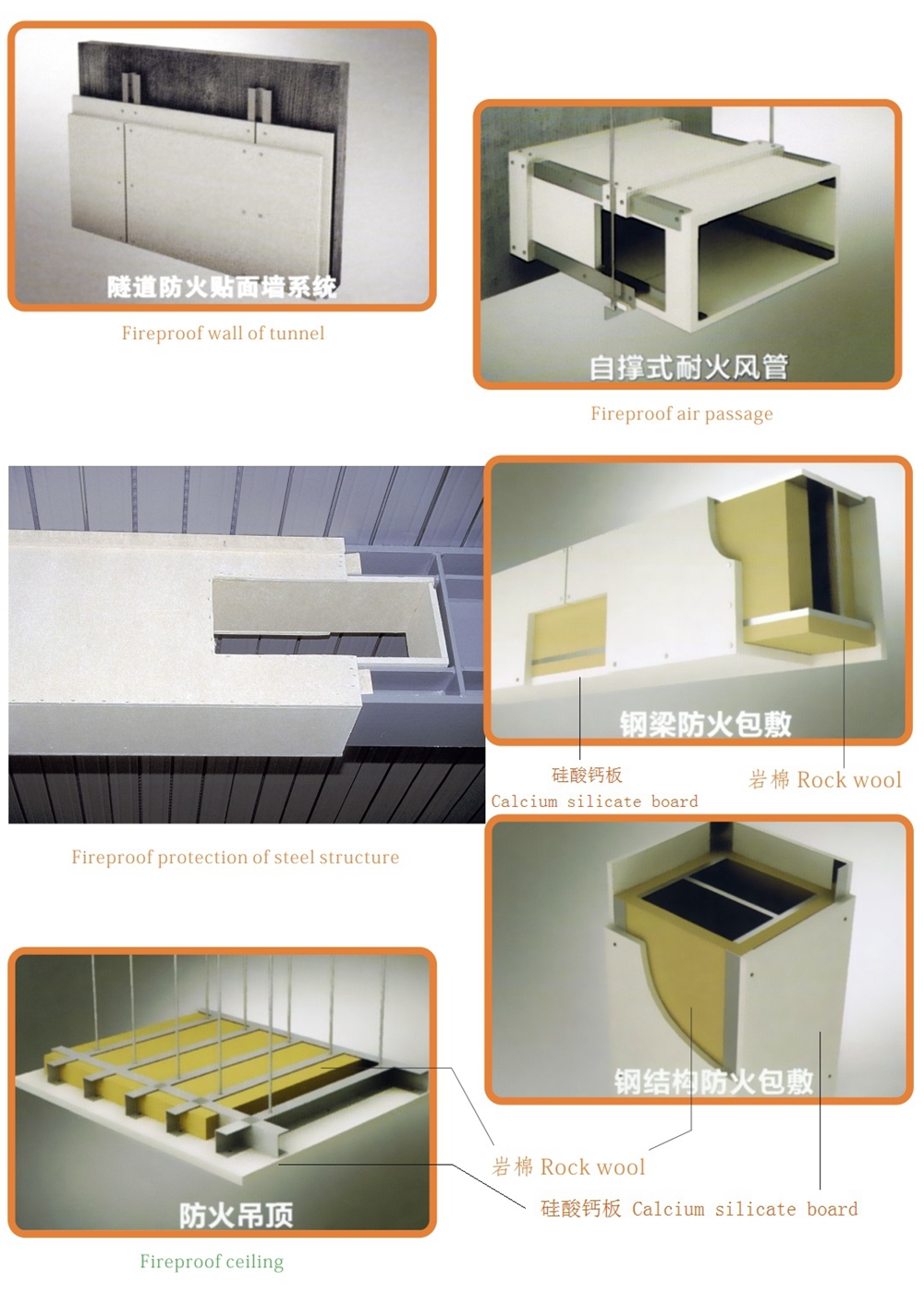

Guidance of Installation
click to view each detail picture
